Beeston Free Church

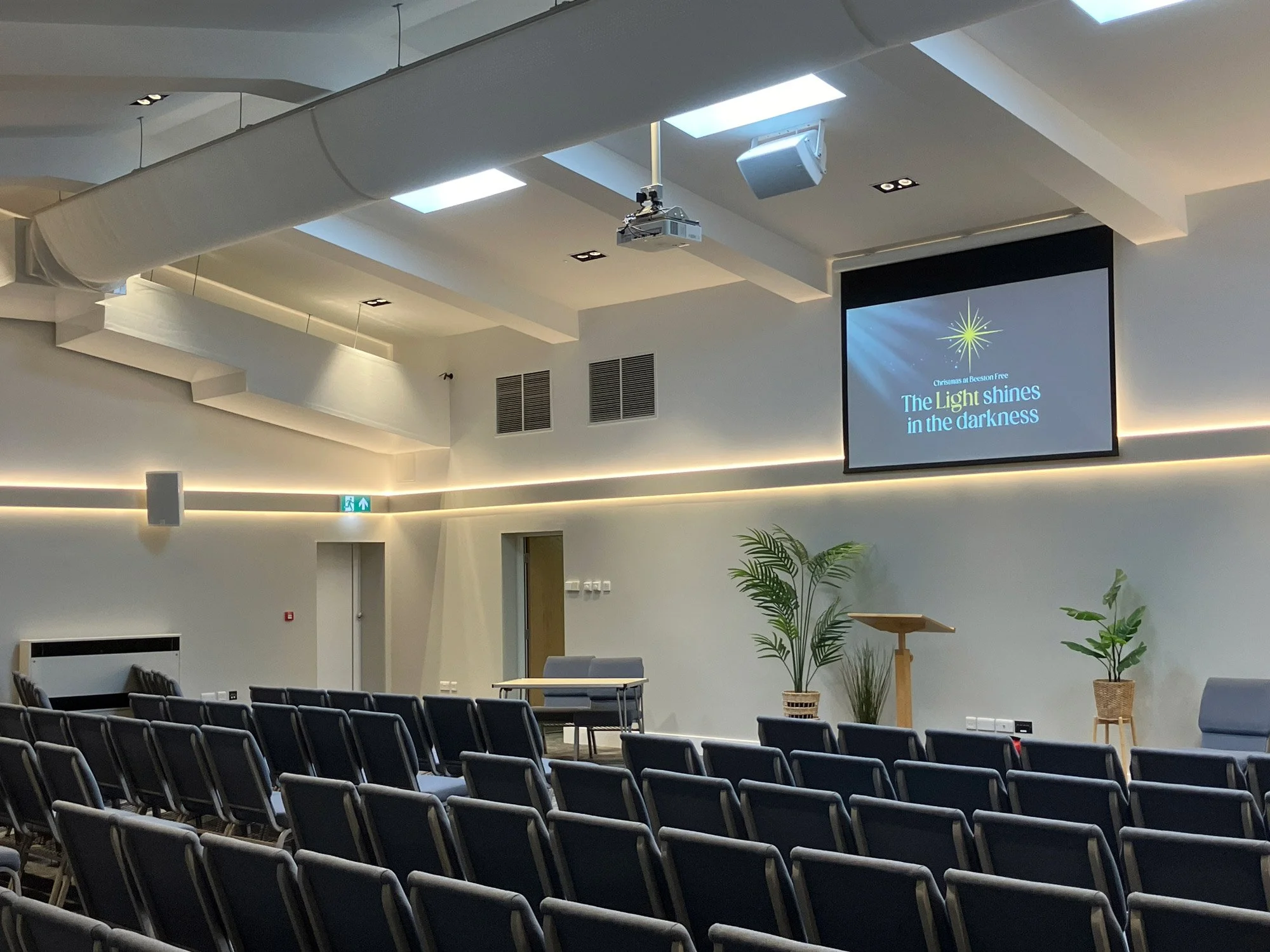

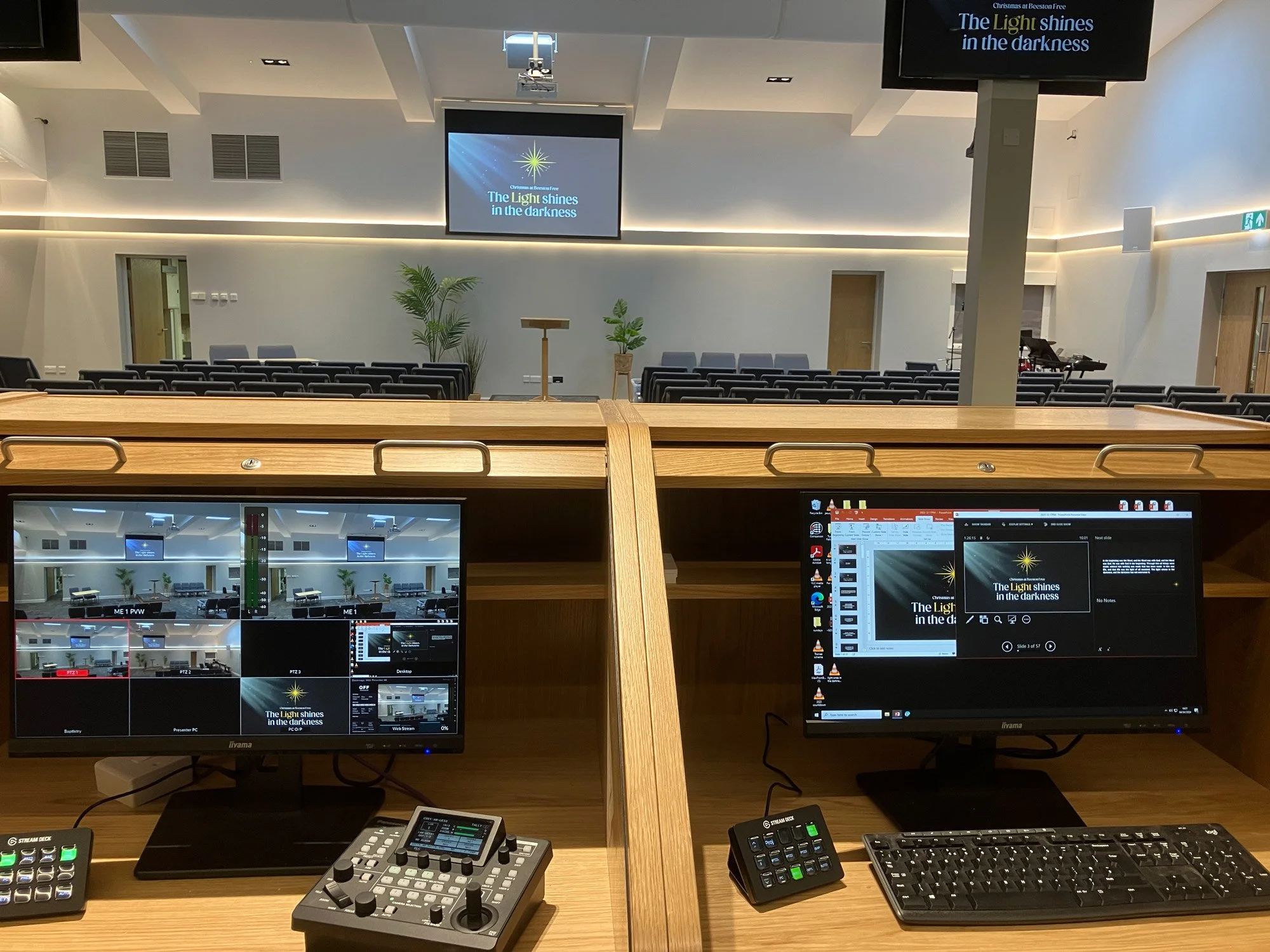

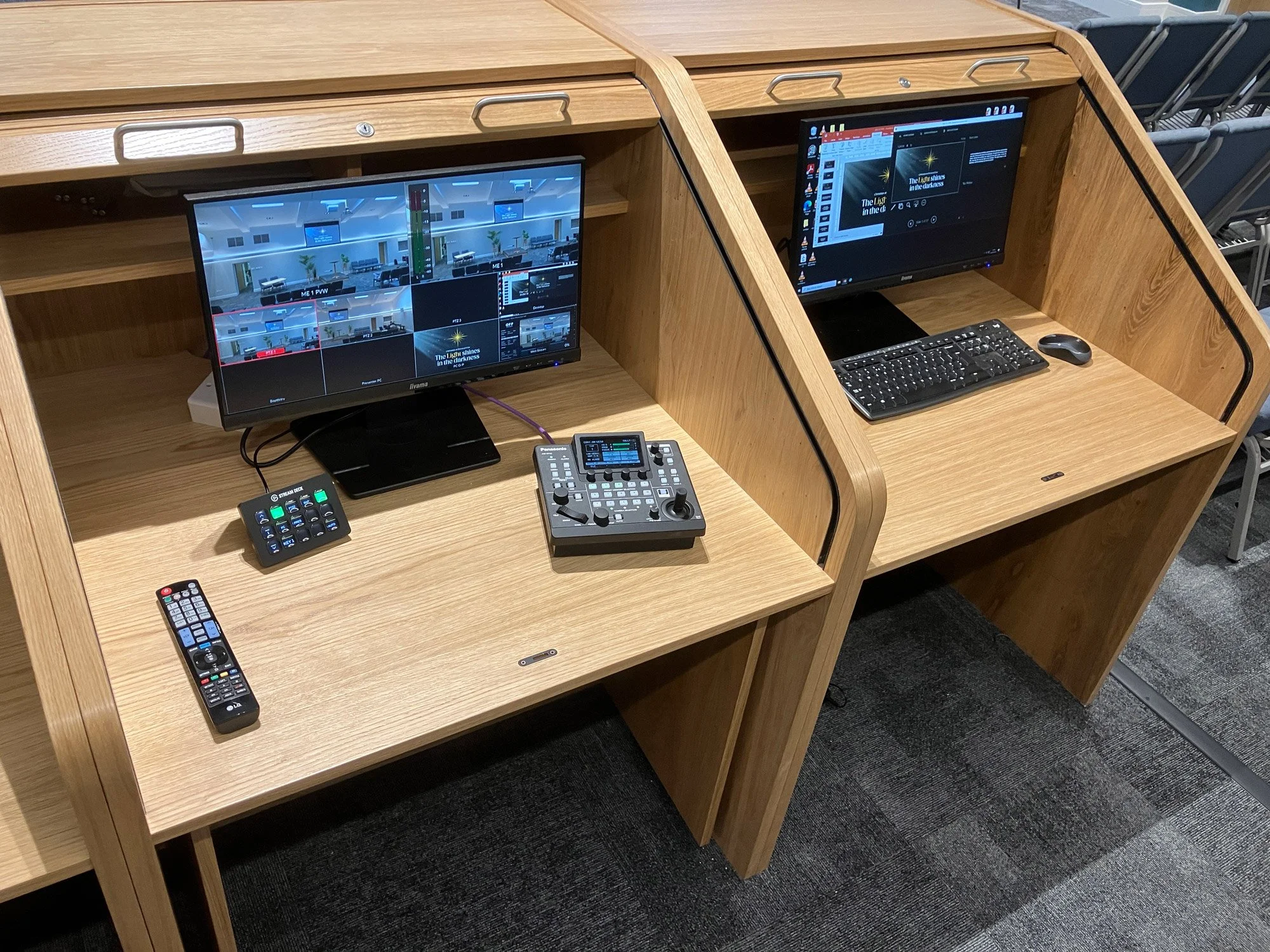

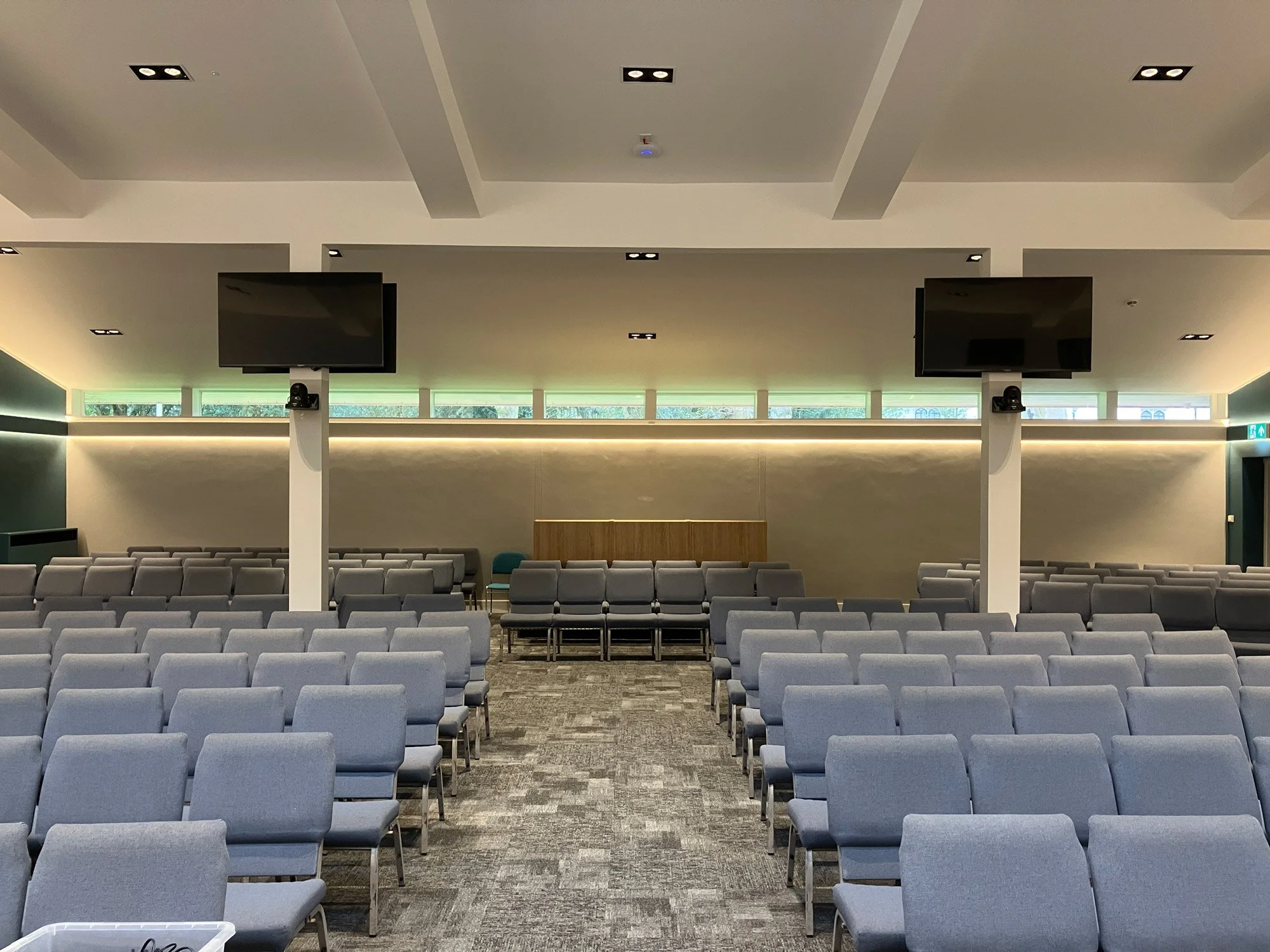

A full-range Martin Audio sound reinforcement system with CDD cabinets and SX subs complemented the interior with its pleasing aesthetics. Data cabling was installed to allow multiple locations for digital stage box connections, and additional standard hard-wired XLR microphone inputs were strategically placed. A perimeter induction loop was installed along with the client's existing Behringer X32 rack mixer and Sennheiser radio microphones. Four 55" LG commercial displays and a 2.3m projector screen with a Sony 6000ANSI lumen laser projector were installed for visuals, along with two Panasonic UE50 PTZ cameras with theirbroadcast quality Exmor sensor for live streaming, along with additional SDI input ports for temporary camera connections for baptisms when the floor is opened up to reveal the baptistery. Signals can be sent from the Church to ancillary rooms' screens via the Blackmagic Design ATEM2M/E Constellation and the Wyrestorm HDMI matrix. Simple control for volunteer operator use is achieved via custom-programmed StreamDeck controllers and a Synergy push-button controller, recalling presets for different services and mid-week operations.
